Intelligent High Speed Automatic Rigid Box Making Machine Multifunction 2 In 1 50-52pcs/Min Gift Box Making Machine

high speed automatic rigid box making machine

multifunction 2 in 1 gift box machine

rigid box making machine 50-52pcs/min

원래 장소:

중국

브랜드 이름:

Lishunyuan

인증:

모델 번호:

LY-HB3000CQ

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

유형:

자동 단단한 상자 제조 기계

자동등급:

완전 자동

예어::

보석함 단단한 상자 휴대폰 상자 화장품 상자

애플리케이션::

선물상자, 화장품상자, 휴대폰상자 만들기

속도:

50-52개/분

보증:

1년

보증 서비스 후 ::

비디오 기술 지원, 온라인 지원

현지 서비스 위치:

베트남, 인도, 말레이시아, 대한민국, 터키

기압:

0.5-0.7mpa

전원공급장치:

전원공급장치

기계 중량 기계 크기:

6200 킬로그램

기계 크기:

L10000*W6000*H3500mm

강조하다:

high speed automatic rigid box making machine

multifunction 2 in 1 gift box machine

rigid box making machine 50-52pcs/min

지불 및 배송 조건

최소 주문 수량

가격

협상 가능

포장 세부 사항

영화와 합판 크레이트

배달 시간

20일

지불 조건

신용장, 전신환

공급 능력

30 세트/월

Intelligent High Speed Automatic Rigid Box Making Machine Multifunction 2 In 1 50-52pcs/Min Gift Box Making Machine

최상의 가격을 얻으세요

비디오

완전 자동 다기능 지능형 고속 2 in 1 하드 박스 제작기

최상의 가격을 얻으세요

비디오

다기능 2 in 1 지능형 고속 자동 하드 박스 제작기 50-70개/분

최상의 가격을 얻으세요

비디오

지능형 고속 자동 딱딱 박스 만드는 기계 25-32pcs/min

최상의 가격을 얻으세요

저희와 연락

+86-13802379158

aureal@dglyjx.com

86-769-23174590

지금 연락하세요

제품 설명

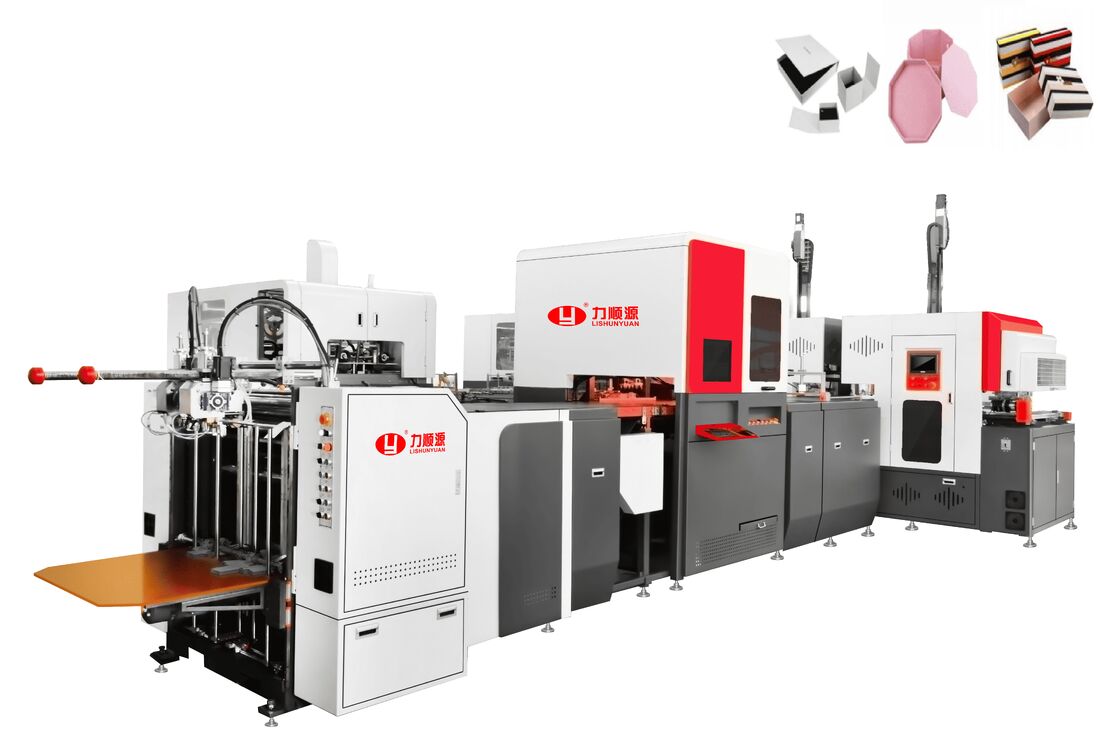

Intelligent High Speed Automatic Rigid Box Making Machine For Making Lid and Base Box At The Same Time

Name: Intelligent High Speed Automatic Rigid Box Making Machine Multifunction 2 In 1 50-52pcs/Min Gift Box Making Machine
Brand: Guangdong Lishunyuan Intelligent Automation Co., Ltd.
SKU: LY-HB3000CQ
Price: 135,006.00 USD
Availability: InStock

LY-HB3000CQ.pdf

Description of Rigid Box Making Machine

LY-HB3000CQ Rigid Box making machine can produce the lid boxes and bottom boxes at the same time with the speed up to 50-52 pcs/min. There're two feeders for paper feeding and one side can be taken off and one side is able to work singly.

In a word, it can be used for the synchro production of lid boxes and buttom boxes and for the production of many kinds of box as per the requirements.

Specification of Rigid Box Making Machine

Paper size (A*B)	L: 120-850mm
Paper size (A*B)	W: 60-420mm
Paper thickness	80-300g/m2
Grey board thickness	1-3mm
Finished box size(WLH)	L: 55-350mm
	W: 55-250mm
	H: 15-120mm
Positioning accuracy	±0.05mm
Production speed	60 pcs/min(double)
Power	26KW
Paper stacking Height	800mm
Air pressure	0.5-0.7MPa
Power Supply	380V/50Hz
Machine weight	6200kg
Machine size	L10000W6000H3500mm

Features of Rigid Box Making Machine

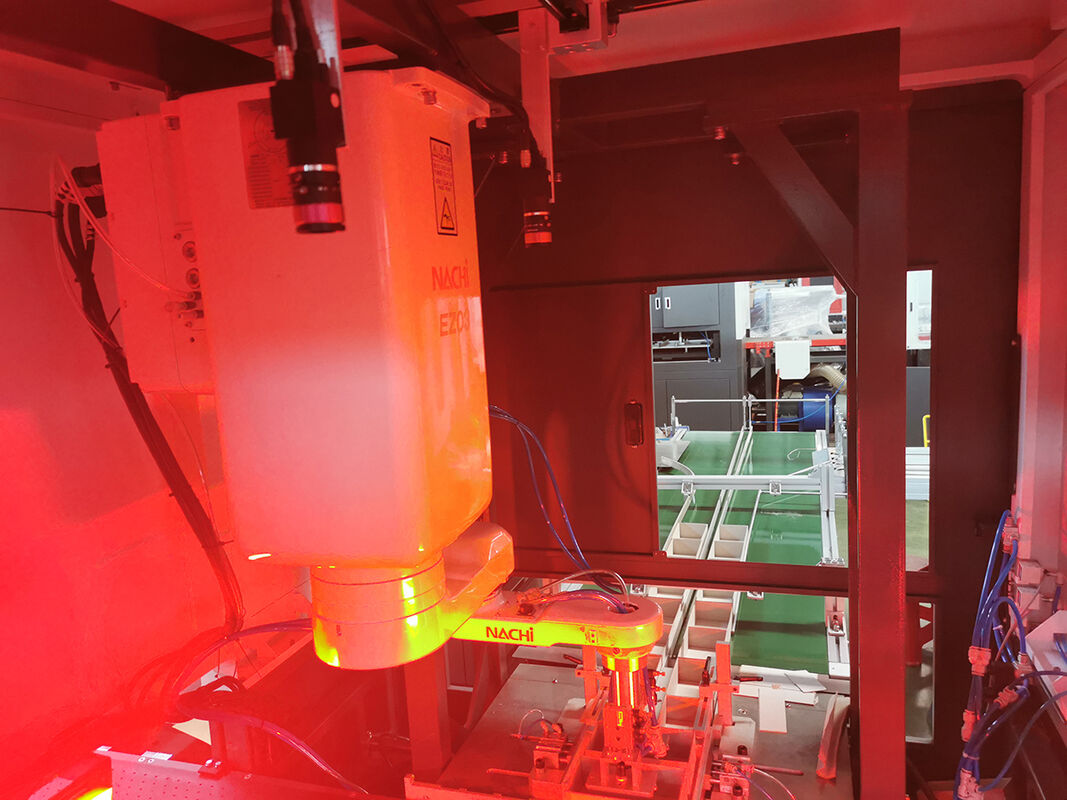

1. The equipment adopts high-precision visual positioning parts with the accuracy of ±0.05mm.
2. The whole equipment uses intelligent PLC control and features in simple operation and friendly human-machine interface.
3. This equipment is suitable for the production of mobile phone boxes,cosmetics boxes,jewelry boxes,moon cake boxes,tea boxes and other boxes.
4. With the production speed up to 60pcs/min.
5. The equipment can produce lid and base boxes at the same time,saving space.The production balance rate of rigid boxes reaches 100%.
6. The machine is able to work on one side.

Details:

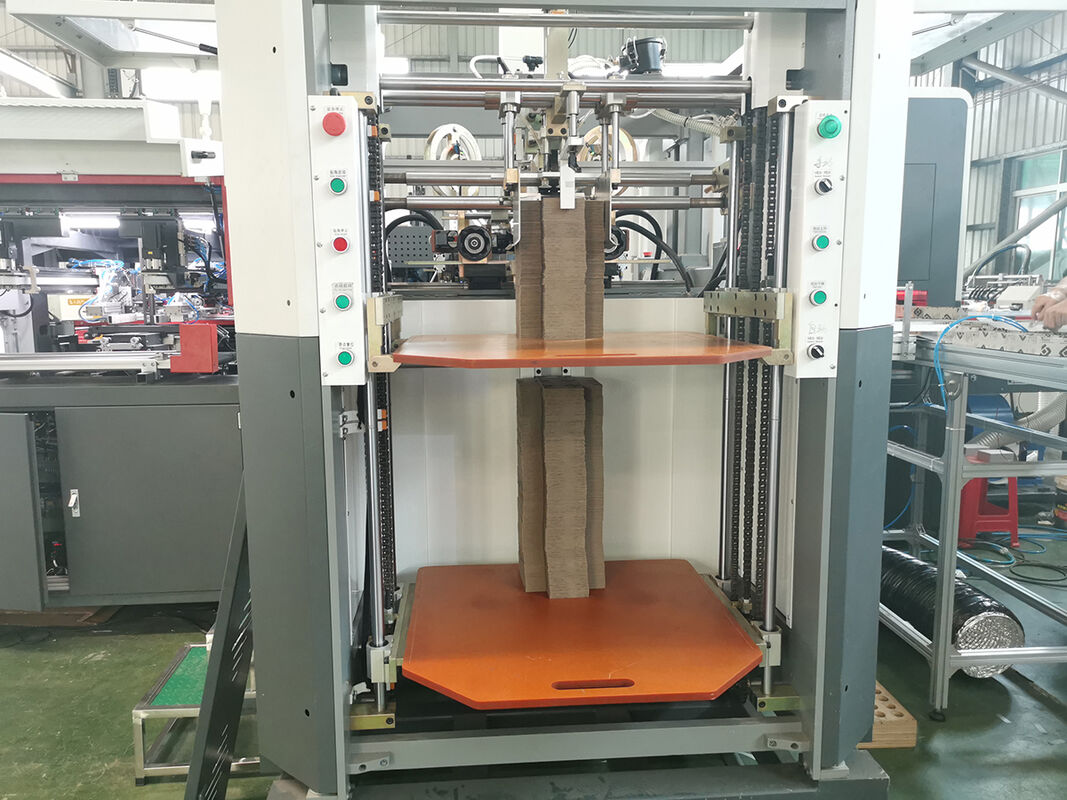

Double feeding table

Two seperate conveyor belts: to reduce the time of cleaning the belt.

High precision,positioning accuracy of ± 0.05mm.

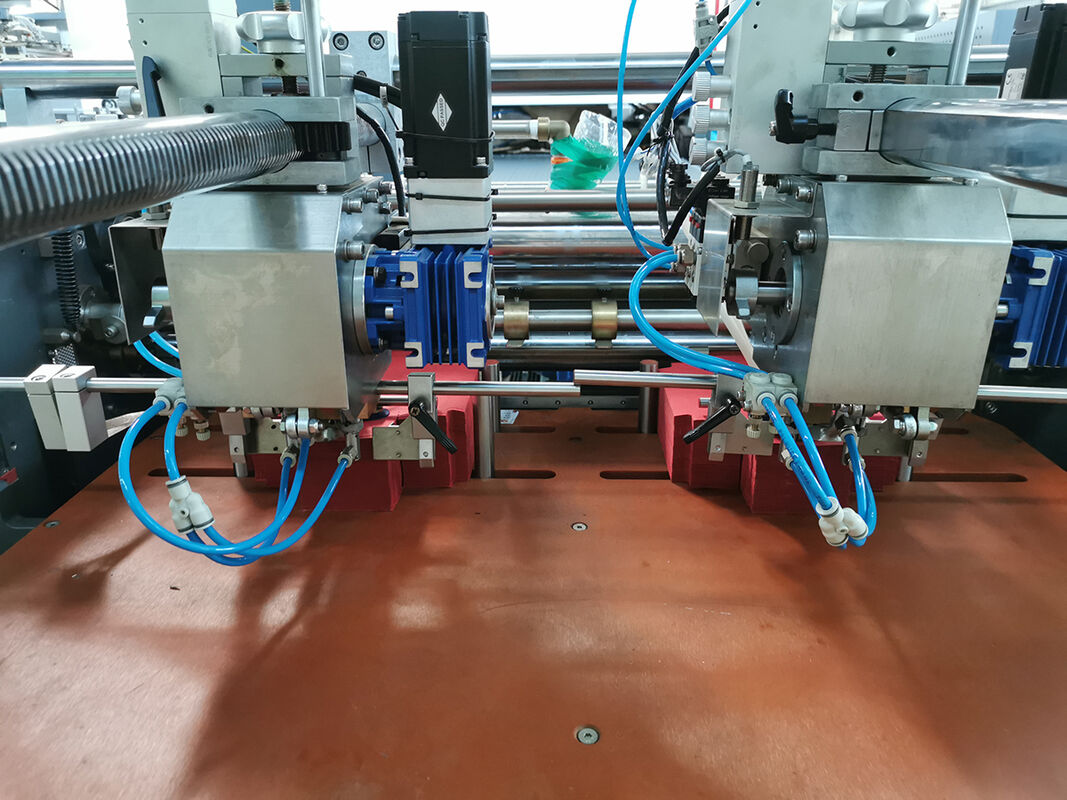

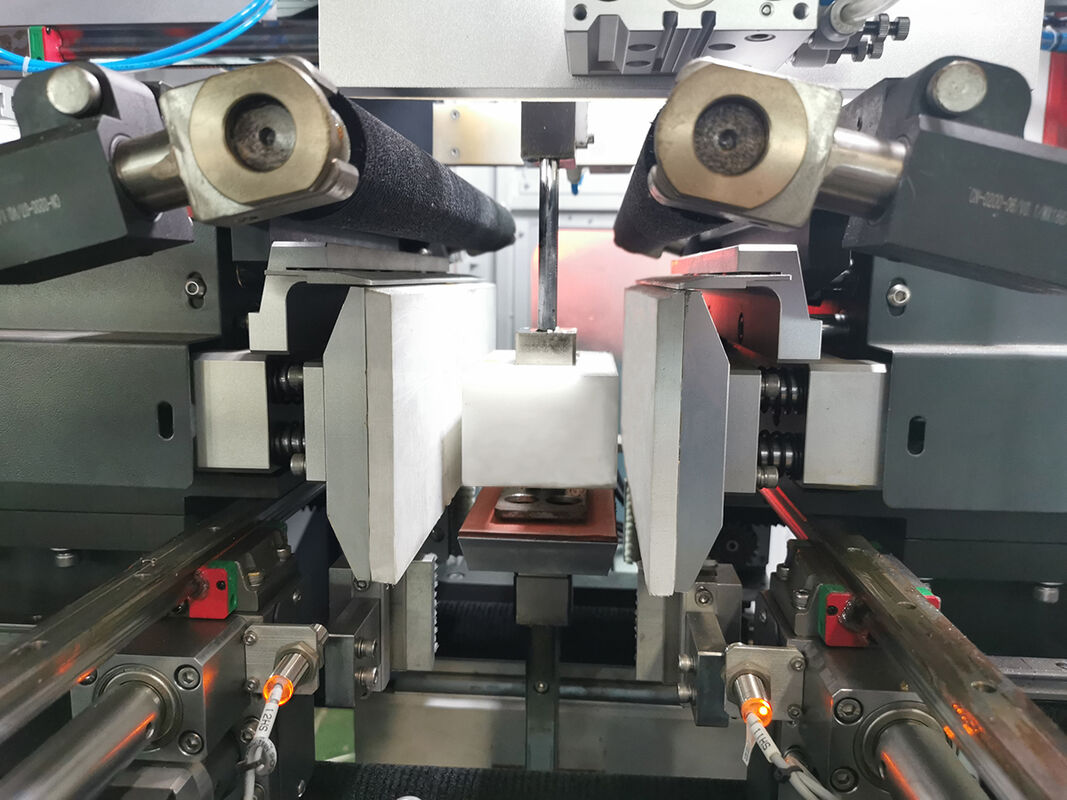

Double heads holding box forming: can be formed at the same time with the base and lid box.

Solidify blade, brush and pressing plate to save production cost.

Layout

Other Hot Selling ,New Design Products:

Intelligent Automatic Rigid Box Making Line	Multifunctional Visual Positioning Machine

Semi Automatic Box Forming Machine	Automatic Box Folding Machine

Company Introduction

LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 20 years of development,

the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states,

Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.

Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,

widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.

Workshop

Package & Delivery

Quality After-sales Service

1. Before delivery, customer can arrange personnel to train in our company.

2. We will send our engineer to the buyer's factory, but the buyer should bear all the charges, like the air tickets, food,visa and all local charges.

3. We provide 15 days of training service for free of charge.

4. 24 hours service online!

Certificate

Trade Show

FAQ:

1. What about machine warranty?

---- 1 year warranty including free machine parts replacement ( consumables are not included).

2. When the machine breaks down, how do you help us solve the problem

----① We have local service team.

----② 24 hours service online,we will provide you the online support.

3. What machines are used to make rigid boxes?

---- Necessary equipments:Grooving machine, Die Cutter, Printing Machine, Paper feeding and gluing machine, Box corner pasting machine, Box positioning machine, Box wrapping machine, Lining machine.
